3.50 Lac / PIECE
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Grain Cleaning |
| Automation Grade | Automatic |
| Power Source | 5 TO 7.5 HP |
| Click to view more | |
Product Details
Condition
New
Driven Type
Pneumatic, Mechanical, Hydraulic, Electric
Material
Mild Steel
Brand Name
ROSHAN SEED GRADER
Packaging Type
ON DEMAND

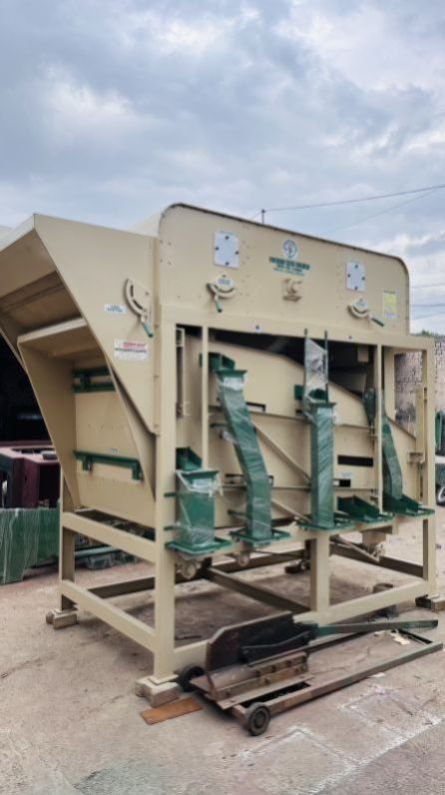

Roshan Seed Grader
Model :- RSG-3 Screen (reversed )
Capacity :- 2-3TPH at 12 % moisture content & 20 % impurities bassed on PADDY
Over all dimension :-350x180x332 cms (L*B*H)
No. of Airaspiritaion :- 2(Two)
Electric motter:-5hp+HP 3 phase 440vt ac supply.
No. of Screen :- 3 (three)
Size of screen :- Top screen 90x114cms
Middle screen 90x182cms
Bottom screen 90x182 cms
SCREEN MATRIAL :- TATA PIPE FRAME
SCREEN :- CNC PUNCHING MACHINE
Screen cleaning :- top screen by beaters, middle &bottom screen by travling BY BRUSH
No. of blower:- 1 (one )
Blower capacity :- 4050 cfm at 45 mm wgsp
Blower speed :- 2800 rpm
This machineis suitable for the cleaning & grading of various creals seeds, vagitable seeds , oil seeds foresty seeds fodder seeds bajra , dust & also under size
Over size matrial from the raw seed / grain like wheat , gram , urad ,moong , paddy chick peas , peas, maize etc. complete with electric motter stater switch &standerd feature.
The cradle oscilation speed and air control is variable the screen shall be inter changeable . the unit is highly finished painted with red oxide primer followed by 3 coat of ESPAA finish paint.
